- Heavy-duty rotary gear pumps for continuous, abrasive-duty applications.
- Superior wear resistance for handling abrasive and demanding fluids.
- Head and backhead jackets for thermal regulation in sensitive processes.
- Packing or mechanical seal options for flexible sealing needs.
- Enhanced rotor shaft support minimizes deflection and extends pump life.
| Brand | Gorman-Rupp |
| Size | 1-1/2″ (40 mm), 2″ (50 mm), 3″ (80 mm), 4″ (100 mm) |
| Max Capacity | 325 GPM (21 lps) |
| Max Viscosity | 250000 SSU (53925 cST) |
| Max Pressure | 200 PSI (14 BAR) |
| Min Temperature | -60 F (-51 C) |
| Max Temperature | 500 F (260 C) |
| Materials of Construction | Hard Iron |
Some Models
| Item | Size | Casing | Impeller / Rotor | Drive | Flange | Seal |
| GHA1 1/2GC3-B | 1.5 x 1.5 | Cast Iron | Ductile Iron | Basic | NPT | Mechanical |
| GHA1 1/2GC4-B | 1.5 x 1.5 | Cast Iron | Ductile Iron | Basic | NPT | Packing |
| GHA1 1/2GF3-B | 1.5 x 1.5 | Cast Iron | Ductile Iron | Basic | NPT | Mechanical |
| GHA1 1/2GF4-B | 1.5 x 1.5 | Cast Iron | Ductile Iron | Basic | NPT | Packing |
| GHA1 1/2GH3-B | 1.5 x 1.5 | Cast Iron | Ductile Iron | Basic | NPT | Mechanical |
| GHA1 1/2GH4-B | 1.5 x 1.5 | Cast Iron | Ductile Iron | Basic | NPT | Packing |
| GHA1 1/2GJ3-B | 1.5 x 1.5 | Cast Iron | Ductile Iron | Basic | NPT | Mechanical |
| GHA1 1/2GJ4-B | 1.5 x 1.5 | Cast Iron | Ductile Iron | Basic | NPT | Packing |
| GHA2JJ3-B | 2 x 2 | Cast Iron | Ductile Iron | Basic | NPT | Mechanical |
| GHA2JJ4-B | 2 x 2 | Cast Iron | Ductile Iron | Basic | NPT | Packing |
| GHA2JL3-B | 2 x 2 | Cast Iron | Ductile Iron | Basic | NPT | Mechanical |
| GHA2JL4-B | 2 x 2 | Cast Iron | Ductile Iron | Basic | NPT | Packing |
| GHA2JP3-B | 2 x 2 | Cast Iron | Ductile Iron | Basic | NPT | Mechanical |
| GHA2JP4-B | 2 x 2 | Cast Iron | Ductile Iron | Basic | NPT | Packing |
| GHA2NK3-B | 2 x 2 | Cast Iron | Ductile Iron | Basic | NPT | Mechanical |
| GHA2NK4-B | 2 x 2 | Cast Iron | Ductile Iron | Basic | NPT | Packing |
| GHA2NM3-B | 2 x 2 | Cast Iron | Ductile Iron | Basic | NPT | Mechanical |
| GHA2NM4-B | 2 x 2 | Cast Iron | Ductile Iron | Basic | NPT | Packing |
| GHA2NP3-B | 2 x 2 | Cast Iron | Ductile Iron | Basic | NPT | Mechanical |
| GHA2NP4-B | 2 x 2 | Cast Iron | Ductile Iron | Basic | NPT | Packing |
| GHA2RM3-B | 2 x 2 | Cast Iron | Ductile Iron | Basic | NPT | Mechanical |
| GHA2RM4-B | 2 x 2 | Cast Iron | Ductile Iron | Basic | NPT | Packing |
| GHA2 1/2RM3-B | 2.5 x 2.5 | Cast Iron | Ductile Iron | Basic | ANSI | Mechanical |
| GHA2 1/2RM4-B | 2.5 x 2.5 | Cast Iron | Ductile Iron | Basic | ANSI | Packing |
| GHA3NK3-B | 3 x 3 | Cast Iron | Ductile Iron | Basic | NPT | Mechanical |

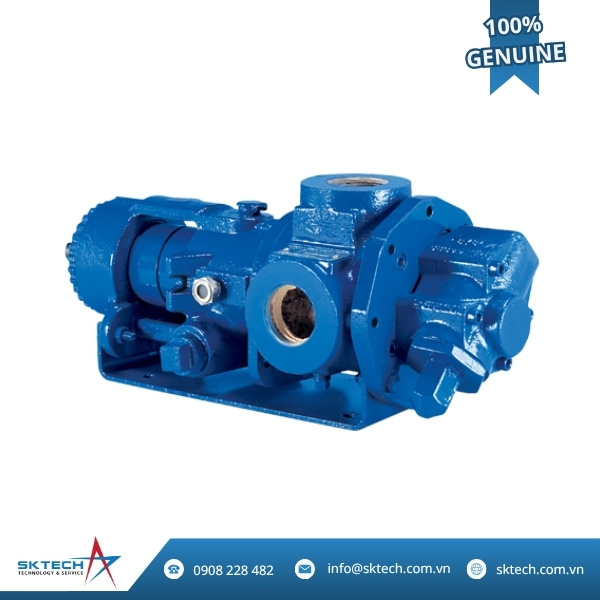

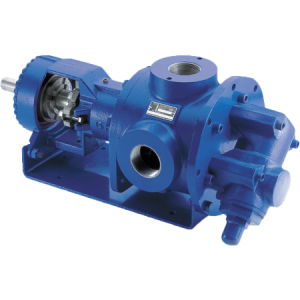

The Gorman-Rupp GHA Series is a heavy-duty rotary gear pump line engineered for continuous operation in abrasive or extreme service conditions. Ideal for pumping challenging or erosive fluids, the GHA Series offers superior wear resistance and long-term durability, even in the toughest environments.
Key features include:
-
Abrasive fluid handling: Built for fluids containing abrasive particles or for applications where wear resistance is critical.
-
Temperature control capability: Equipped with head and backhead jackets to support heating or cooling during operation.
-
Sealing flexibility: Choose from packing seals for simplicity or mechanical seals for improved containment.
-
Robust shaft support: Heavy-duty construction provides enhanced shaft alignment and minimized deflection, especially during continuous use.
-
Maintenance-free bearing design: An integrated radial/thrust bearing requires no lubrication, improving operational uptime.
-
Low-speed performance: Optimized for reduced-speed operation, which lowers wear and supports extended pump service life.
The GHA Series is an extreme-duty pump solution for operations that demand maximum wear protection, thermal control, and reliable continuous service.
