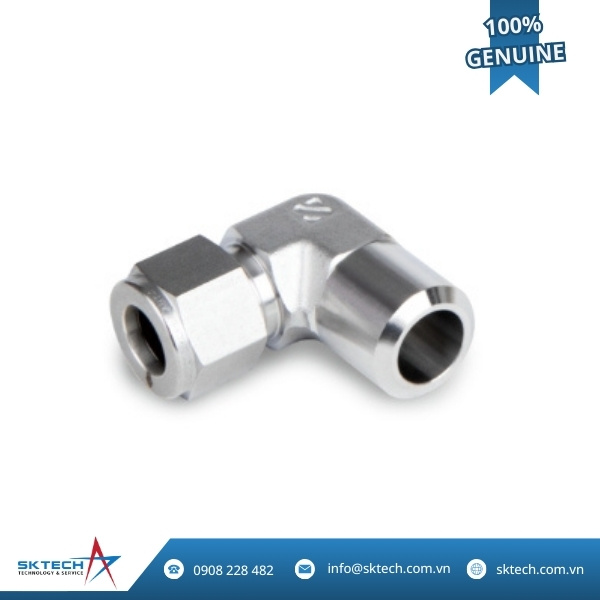

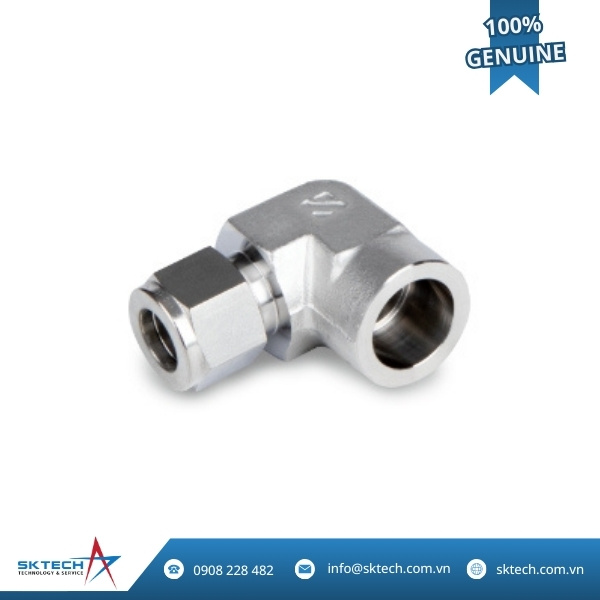

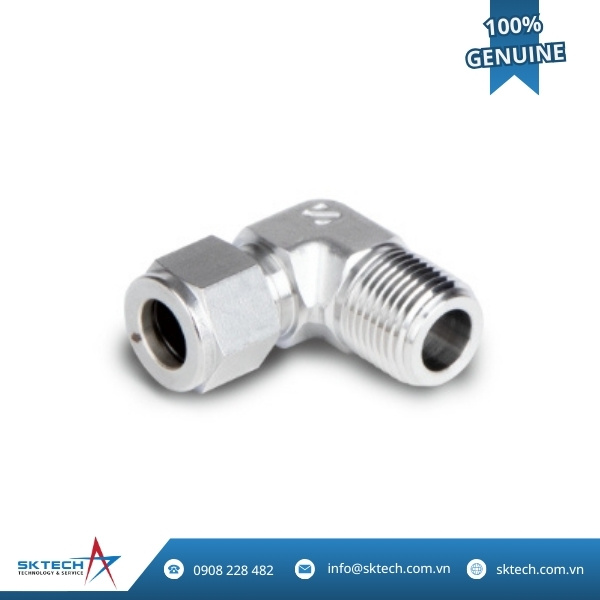

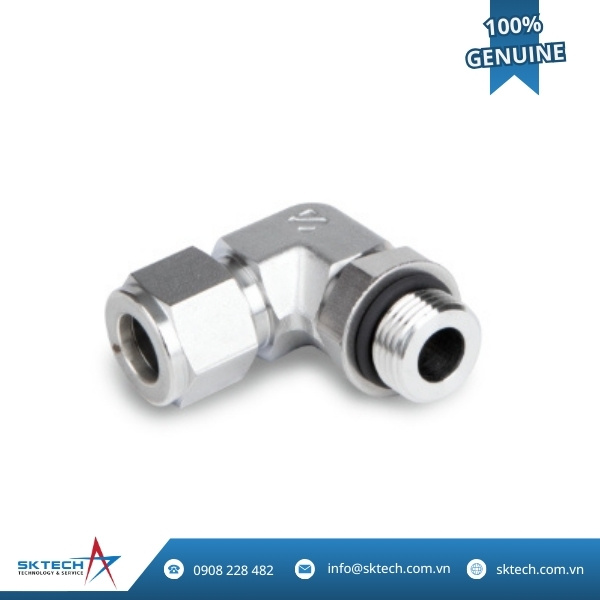

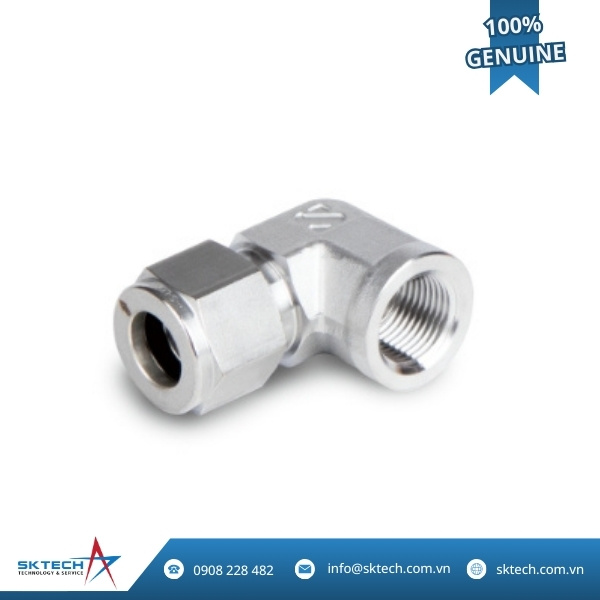

S‑LOK 90° Tube Elbow Fittings
- 316 stainless steel, double-ferrule compression design ensures leak-tight, pressure-resistant connections
- Available in male and female configurations, compatible with tubing (1/16″–1″ OD) and pipe threads (NPT, BSP, metric)
- No special tools needed—hand install with nut finger-tight plus ¾ turn on small sizes
- Reusable multiple times without compromising seal integrity
- Compatible with major brands (Swagelok®, Parker® A‑LOK®)
- Ideal for instrumentation, hydraulic, pneumatic and chemical systems
| Parameter | Specification |
|---|---|
| Brand | S‑LOK |
| Materials | 316 stainless steel (body, nut, ferrules) |
| Tube OD | 1/16″ to 1″ (or 2–25 mm) |
| Thread Options | NPT, BSP, Metric |
| Seal Design | Double-ferrule compression |
| Installation | Finger-tight + ¾ turn for 1/16″–3/16″ |
| Reusability | Yes – multiple reassemblies |
| Brand Compatibility | Swagelok®, Parker® A‑LOK® |
| Applications | Instrumentation, chemical, pneumatic, hydraulic |
The S‑LOK 90° Tube Elbow Fittings are precision-engineered, double-ferrule compression fittings ensuring rugged, leak-free 90° turns for tubing lines. Constructed from 316 stainless steel, they meet stringent requirements in chemicals, oil & gas, power generation, and instrumentation systems.
Offered in both male and female variants, these elbows connect tubing (1/16″–1″ OD) to matching pipe threads (NPT, BSP, Metric) seamlessly . Installation is simple—finger-tighten the nut and add ¾ turn on small sizes; no insertion tools required, and fittings can be reassembled without losing sealing performance .
Fully compatible with Swagelok® and Parker® A‑LOK®, S‑LOK ensures cross-brand interchangeability and reduces inventory costs.
As the official S‑LOK distributor in Vietnam, SK Tech provides authentic fittings, sizing support, and integration services across industries requiring precision fluid connections.
