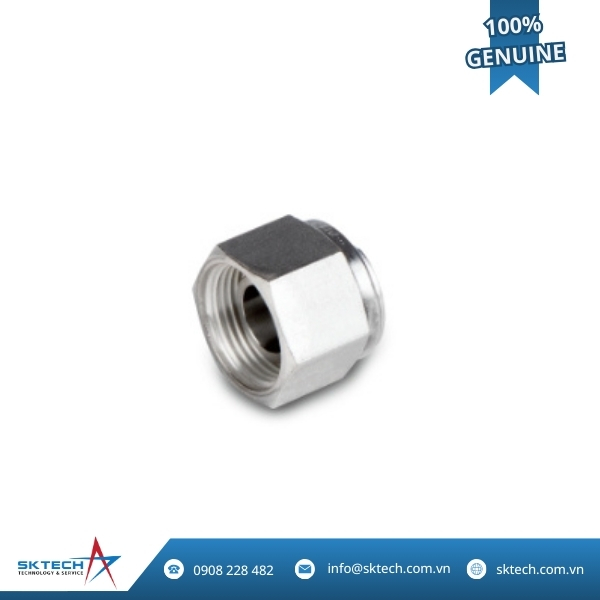

S‑LOK Tube Fittings – Plug & Cap
- 316 stainless steel construction with double-ferrule compression for reliable, leak-tight sealing
- Covers metric and imperial sizes: tube O.D. from 1/16″ to 2″, including common sizes like ¼″ and ½″
- Easy tool-free installation using finger-tight plus ¾-turn for small sizes
- Reusable without compromising sealing integrity
- Fully interchangeable with Swagelok® and Parker® A‑LOK®
- Ideal for capping off lines or sealing unused ports in instrumentation, pneumatic, hydraulic, and chemical systems
| Feature | Specification |
|---|---|
| Brand | S‑LOK |
| Material | 316 stainless steel (body, nut, ferrules) |
| Tube O.D. Range | 1/16″ to 2″ (or 2–38 mm) |
| Plug Part Numbers | SP-4M-S6, SP-10M, etc. (metric) |
| Cap Part Numbers | SC-4M-S6, SC-8-S6, etc. |
| Installation Torque | Finger-tight + ¾-turn for 1/16″–3/16″ |
| Reusability | Yes – can be reassembled multiple times |
| Brand Compatibility | Interchangeable with Swagelok®, Parker® A-LOK® |
| Applications | Instrumentation, pneumatic, hydraulic, chemical systems |
The S‑LOK Plug & Cap series provides a secure solution for sealing and plugging tubing systems. Manufactured from 316 stainless steel with a robust double-ferrule compression mechanism, these fittings deliver outstanding leak resistance and durability.
Available in a wide range of sizes — from 1/16″ to 2″ (or metric equivalents) — the plugs (SP-series) and caps (SC/SCO-series) support both tubing and port sealing applications. Installation is simple: finger-tighten the nut, then add ¾-turn on smaller sizes, ensuring a secure seal without the need for wrenches .
These fittings are reusable, allowing easy maintenance and reconfiguration. With compatibility across major brands like Swagelok® and Parker® A‑LOK®, inventory can be streamlined.
As the authorized distributor of S‑LOK in Vietnam, SK Tech offers these components in full range, with technical guidance and support for critical fluid systems.
