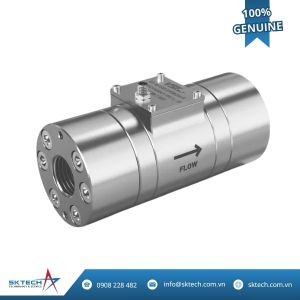

VSE VHM Gear Flow Meter
- High-precision inline gear flow meter designed especially for abrasive and poorly lubricating media.
- Utilizes displacement principle, contactless signal pickup: single/double/quad resolution with PNP/NPN output.
- Dead-space optimized, ideal for painting and spraying systems.
- Performance data: Flow range: 0.01–20 l/min, Pressure rating: up to 250 bar, Temperature range: –20 °C to +120 °C, Frequency output: up to 1,000 Hz, Viscosity range: 1–20,000 cSt
| Parameter | Value |
|---|---|
| Brand | VSE Flow |
| Flow Range | 0.01 – 20 l/min |
| Max Pressure | 250 bar |
| Temperature Range | –20 °C to +120 °C |
| Frequency Output | Up to 1,000 Hz |
| Viscosity Range | 1 – 20,000 cSt |
| Resolution Options | Single / Double / Quad, PNP or NPN output |
| Materials | Housing: SS 1.4404; Gears: SS 1.4462; Bearings: WC; Seals: FEP‑FKM |
| Dead-Space Optimized | Flush-friendly design |
The VSE VHM Series gear flow meters are engineered for high-precision measurement of abrasive or low-lubricity fluids. Their inline, positive-displacement design delivers stable, accurate flow data with minimal dead zones, making them exceptionally flushable in paint-spraying and coating processes.
Equipped with single, double, or quad resolution pickup systems, the VHM meters output clean PNP or NPN signals, providing flexible integration into various control systems. The stainless steel housing, tungsten carbide gears, and SiC bushings ensure durability under high wear conditions.
Flow range covers 0.01 to 20 l/min, with pressure up to 250 bar, operating temperatures between –20 °C and +120 °C, and viscosities from 1 to 20,000 cSt.
SK Tech is the authorized distributor of VSE Flow in Vietnam, committed to providing genuine VHM flow meters, local technical support, and official warranty services.
