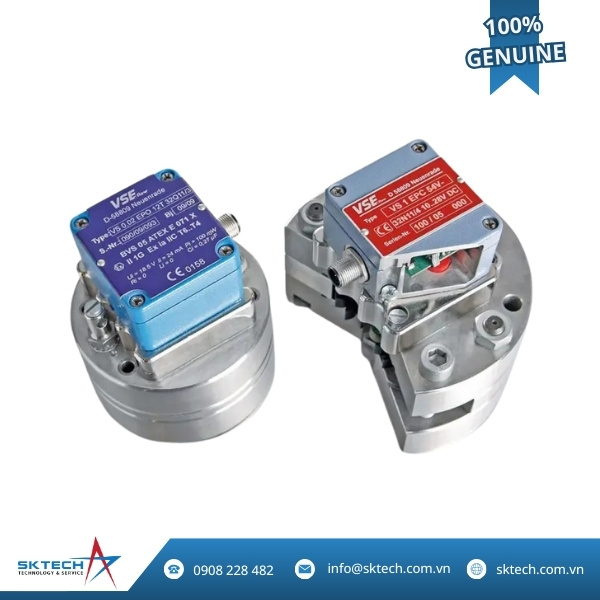

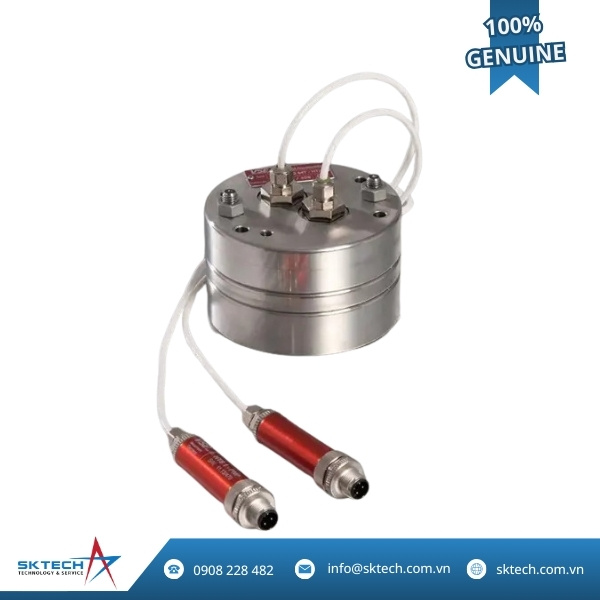

VSE VS Gear Flow Meter
- High-accuracy gear-flow meter with accuracy up to ±0.3% and repeatability ±0.05%
- Wide flow range: 0.002–525 L/min with turn-down ratio 1,000:1
- Pressure capacity up to 450 bar
- Temperature rating from –40 °C to +210 °C
- Viscosity range from 1 to 1,000,000 cSt – suitable for oils, resins, paints, chemicals
- Available in grey cast iron or stainless steel housing
- Optional ATEX/EX versions for hazardous environments
| Specification | Details |
|---|---|
| Flow range | 0.002 – 525 L/min (turn-down up to 1,000:1) |
| Accuracy | ±0.3% of reading; Repeatability ±0.05% |
| Pressure rating | Up to 450 bar |
| Temperature rating | –40 °C to +210 °C |
| Viscosity range | 1 – 1,000,000 cSt |
| Housing materials | Grey cast iron or stainless steel |
| Explosion-proof options | ATEX/IECEx versions available |
| Signal outputs | Analog 4–20 mA, pulse, RS‑485, CANopen, IO-Link (model dependent) |
The VSE VS Gear Flow Meter is a high-performance volumetric flow meter using precision-engineered gear wheels for extremely accurate flow measurement of lubricating and non-corrosive liquids. German-engineered for industrial robustness, it excels in applications requiring superior linearity and short response times. Compatible fluids include petroleum, mineral oils, paints, greases, resins, chemicals, and other viscous media.
With a flow measuring span from 0.002 to 525 L/min, pressure tolerance up to 450 bar, and operational temperatures ranging from –40 °C to +210 °C, the VS meter meets demanding process control requirements. Housing materials include grey cast iron or stainless steel, with ATEX-certified versions available for explosion-hazard zones.
The non-contact signal pickup generates precise digital pulses, and built-in VSI pre-amplifiers can further improve resolution. Output options include analog, frequency/pulse, RS‑485, CANopen, and IO-Link depending on model and integration needs.
At SK Tech, we are proud to serve as the official VSE distributor in Vietnam, providing full product lines, expert flow measurement consulting, seamless integration support, and reliable after-sales service.
