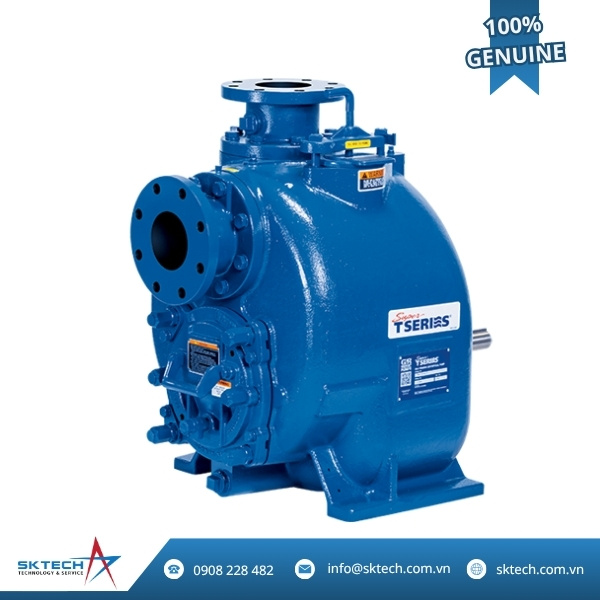

Gorman-Rupp Self-Priming Pumps Super T
- Designed for solids-laden liquids and slurries.
- Automatic repriming without suction/discharge check valves.
- Flows up to 3,400 GPM and heads up to 148 feet.
- Handles solids up to 3 inches in diameter.
- Available in multiple sizes (2″ to 10″).
| Brand | Gorman-Rupp |
| Size | 2″ (50 mm), 3″ (80 mm), 4″ (100 mm), 6″ (150 mm), 8″ (200 mm), 10″ (250 mm) |
| Max Capacity | 3400 GPM (215 lps) |
| Max Head | 130′ (40 m) |
| Max Solids | 3″ (76 mm) |
| Materials of Construction | Cast Iron, CD4MCu, Ductile Iron, Stainless Steel |
Some Models
| Item | Size | Casing | Impeller / Rotor | Drive | Flange | Seal |
| T2C3SC-B | 2 x 2 | Cast Iron | Ductile Iron | Basic | NPT | Tungsten Carbide |
| T2C3SC-B /F | 2 x 2 | Cast Iron | Ductile Iron | Basic | ANSI Spool | Tungsten Carbide |
| T2C3SC-B /FM | 2 x 2 | Cast Iron | Ductile Iron | Basic | DIN Spool | Tungsten Carbide |
| T2C60SC-B | 2 x 2 | Cast Iron | Ductile Iron | Basic | NPT | Silicon Carbide |
| T2C60SC-B /F | 2 x 2 | Cast Iron | Ductile Iron | Basic | ANSI Spool | Silicon Carbide |
| T2C60SC-B /FM | 2 x 2 | Cast Iron | Ductile Iron | Basic | DIN Spool | Silicon Carbide |
| T2C61SC-B | 2 x 2 | Cast Iron | Stainless Steel | Basic | NPT | Silicon Carbide |
| T2C61SC-B /F | 2 x 2 | Cast Iron | Stainless Steel | Basic | ANSI Spool | Silicon Carbide |
| T2C61SC-B /FM | 2 x 2 | Cast Iron | Stainless Steel | Basic | DIN Spool | Silicon Carbide |
| T2C65SC-B | 2 x 2 | CD4MCu | CD4MCu | Basic | NPT | Silicon Carbide |
| T2C65SC-B /F | 2 x 2 | CD4MCu | CD4MCu | Basic | ANSI Spool | Silicon Carbide |
| T2C65SC-B /FM | 2 x 2 | CD4MCu | CD4MCu | Basic | DIN Spool | Silicon Carbide |
| T2C71SC-B | 2 x 2 | Cast Iron | ADI | Basic | NPT | Silicon Carbide |
| T2C71SC-B /F | 2 x 2 | Cast Iron | ADI | Basic | ANSI Spool | Silicon Carbide |
| T2C71SC-B /FM | 2 x 2 | Cast Iron | ADI | Basic | DIN Spool | Silicon Carbide |
| T2D60S-B | 2 x 2 | Cast Iron | Ductile Iron | Basic | NPT | Silicon Carbide |
| T2D60S-B /F | 2 x 2 | Cast Iron | Ductile Iron | Basic | ANSI Spool | Silicon Carbide |
| T2D60S-B /FM | 2 x 2 | Cast Iron | Ductile Iron | Basic | DIN Spool | Silicon Carbide |
| T2D71S-B | 2 x 2 | Cast Iron | ADI | Basic | NPT | Silicon Carbide |
| T2D71S-B /F | 2 x 2 | Cast Iron | ADI | Basic | ANSI Spool | Silicon Carbide |
| T2D71S-B /FM | 2 x 2 | Cast Iron | ADI | Basic | DIN Spool | Silicon Carbide |
| T2E60SC-B | 2 x 2 | Cast Iron | Ductile Iron | Basic | NPT | Silicon Carbide |
| T2E60SC-B /F | 2 x 2 | Cast Iron | Ductile Iron | Basic | ANSI Spool | Silicon Carbide |
| T2E60SC-B /FM | 2 x 2 | Cast Iron | Ductile Iron | Basic | DIN Spool | Silicon Carbide |
| T2E71SC-B | 2 x 2 | Cast Iron | ADI | Basic | NPT | Silicon Carbide |
The Gorman-Rupp Super T Series® pumps are engineered for economical, trouble-free operation across a wide range of industrial and municipal applications. Designed to handle solids-laden liquids and abrasive slurries, these self-priming centrifugal trash pumps are dependable, easy to maintain, and built for high-efficiency operation.
Requirements
Key features include:
- Superior solids handling: Capable of handling up to 3-inch spherical solids depending on model, including through the recirculation port for models 4″ and up.
- Large volute design: Allows for automatic repriming in a completely open system, without requiring suction or discharge check valves.
- High flow and head: Available in sizes from 2″ to 10″, delivering up to 3,400 gallons per minute (GPM) and heads up to 148 feet.

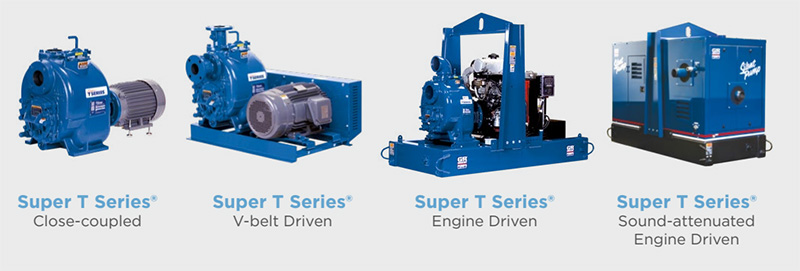

- Multiple configurations: Includes high head “B” versions, close-coupled, and engine-driven options to suit various installation needs.
- Easy maintenance: With external shimless adjustment, the impeller clearance can be quickly adjusted without disturbing the belts, couplings, or seal alignment.
- Quick access for inspection: The removable cover plate with “easy-grip” handle allows internal inspection and servicing without disconnecting piping.
- Replaceable wearplate: Attaches to the cover plate for cost-effective maintenance; no expensive casting replacement required.
- Exclusive cartridge seal: Double-floating, self-aligning, and oil-lubricated, ideal for abrasive and trash-laden fluid applications.
- Enhanced shaft and bearing protection: Dual lip seals and an atmospheric barrier safeguard internal components.
- Optional solids reduction systems:
- Eradicator™ System: Includes self-cleaning wearplate and patented lacerating tooth to break down stringy materials.
- Eradicator Plus™: Built for the harshest duties, handling wipes, hair, trash bags, and more with reinforced components and aggressive cutting action.

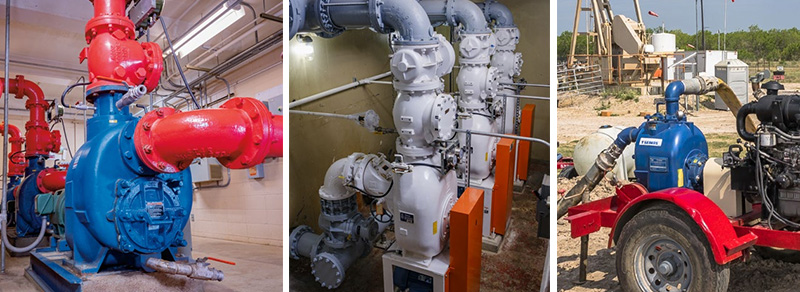

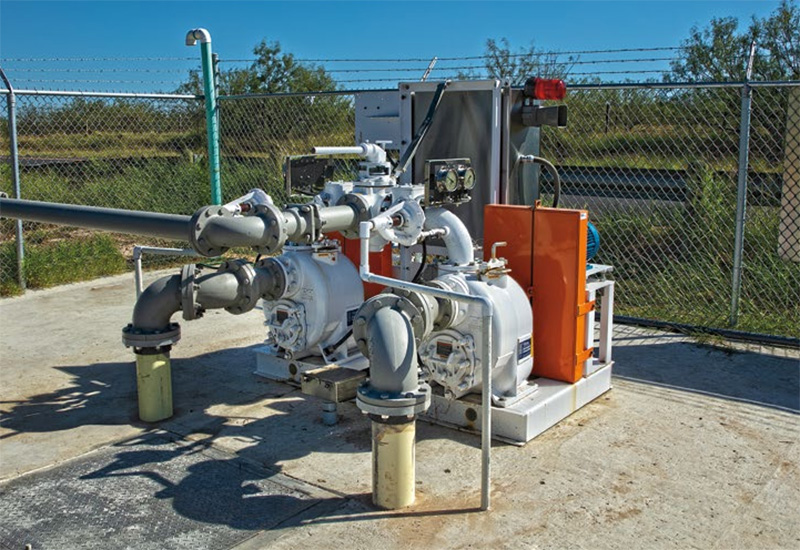

Whether for wastewater treatment, industrial waste, agriculture, or construction, the Super T Series offers a rugged, efficient, and serviceable solution.
