Gorman-Rupp Self-Priming Pumps Ultra V
- Up to 3x higher pressure than standard self-priming pumps.
- Up to 60% more flow for high-demand applications.
- Superior solids handling for industrial and sewage operations.
- Self-cleaning design reduces maintenance and downtime.
- Compact footprint thanks to vertical staging.
| Brand | Gorman-Rupp |
| Size | 3″ (80 mm), 4″ (100 mm), 6″ (150 mm) |
| Max Capacity | 1900 GPM (120 lps) |
| Max Head | 325′ (99 m) |
| Max Solids | 3″ (76 mm) |
| Materials of Construction | Cast Iron, CD4MCu, Stainless Steel |

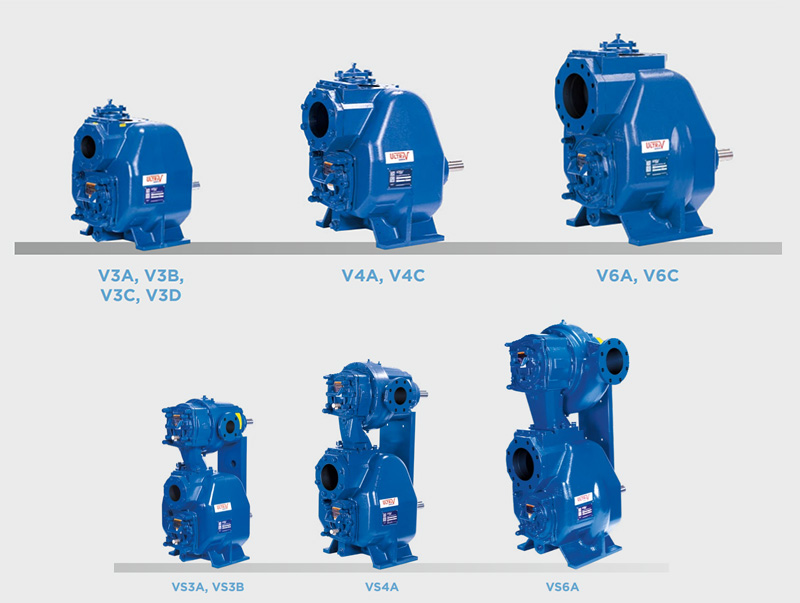

Model
| Item | Size | Casing | Impeller / Rotor | Drive | Flange | Seal |
| V3A60-B | 4 x 3 | Cast Iron | Ductile Iron | Basic | None | Silicon Carbide |
| V3B60-B | 4 x 3 | Cast Iron | Ductile Iron | Basic | None | Silicon Carbide |
| V3C60SC-B | 4 x 3 | Cast Iron | Ductile Iron | Basic | None | Silicon Carbide |
| V3D60SC-B | 4 x 3 | Cast Iron | Ductile Iron | Basic | None | Silicon Carbide |
| VS3A60-B | 4 x 3 | Cast Iron | Ductile Iron | Basic | ANSI | Silicon Carbide |
| VS3B60-B | 4 x 3 | Cast Iron | Ductile Iron | Basic | ANSI | Silicon Carbide |
| V4A60-B | 6 x 4 | Cast Iron | Ductile Iron | Basic | None | Silicon Carbide |
| V4C60SC-B | 6 x 4 | Cast Iron | Ductile Iron | Basic | None | Silicon Carbide |
| VS4A60-B | 6 x 4 | Cast Iron | Ductile Iron | Basic | ANSI | Silicon Carbide |
| V6A60-B | 8 x 6 | Cast Iron | Ductile Iron | Basic | None | Silicon Carbide |
| V6C60SC-B | 8 x 6 | Cast Iron | Ductile Iron | Basic | None | Silicon Carbide |
| VS6A60-B | 8 x 6 | Cast Iron | Ductile Iron | Basic | ANSI | Silicon Carbide |
The Gorman-Rupp Ultra V Series® and VS Series® represent the next generation of high-performance self-priming centrifugal trash pumps. Engineered for demanding industrial, municipal, and wastewater applications, the Ultra V Series delivers up to three times the pressure and 60% more flow than standard trash pumps.
Key features include:
- High-pressure capability: Ideal for applications requiring increased discharge pressure, the Ultra V Series pumps outperform standard single-stage models with up to 3x the pressure.
- Greater flow rate: Delivers up to 60% more flow, improving throughput and operational efficiency.
- Exceptional solids-handling performance: Designed for pumping fluids with large solids content, the Ultra V Series ensures consistent operation even in harsh environments.

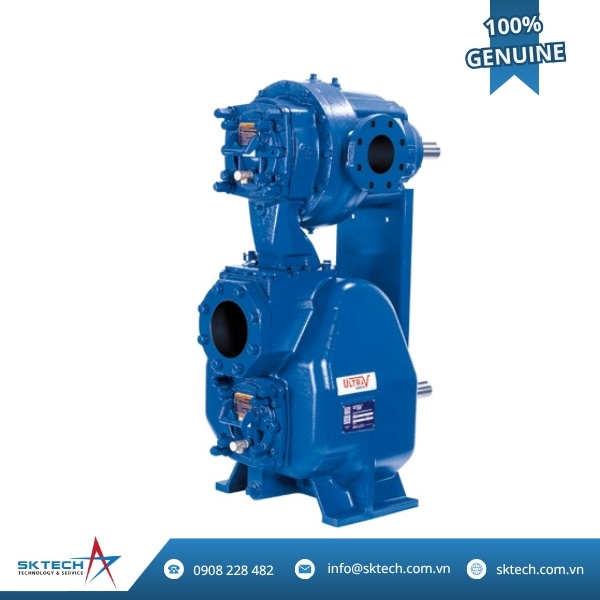

- Modular design with UltraMate® unit: For systems exceeding the standard Ultra V performance, the UltraMate unit can be mounted vertically to the Ultra V pump through a specialized transition chamber, creating a vertically staged system with improved pressure and reduced footprint.
- Flexible installation: The “smart scroll” design allows for multiple discharge configurations, optimizing installation in limited spaces.
- Self-cleaning features: Reduces risk of clogging and maintenance frequency.

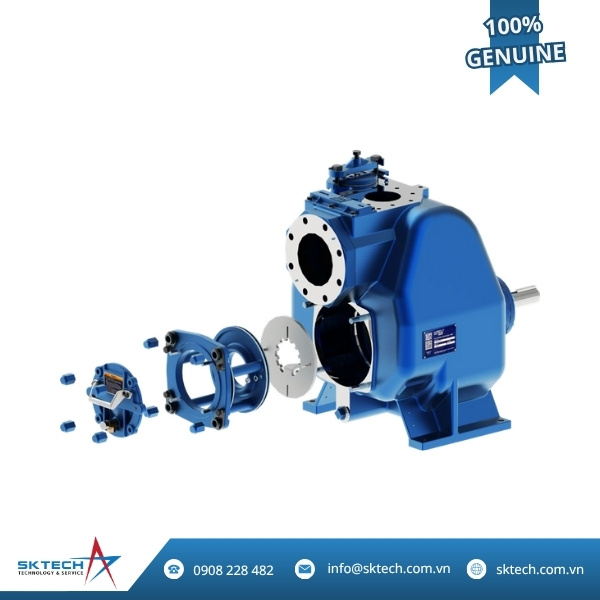

- Easy maintenance: The externally removable suction check valve and interchangeable back cover and rotating assemblies simplify service and reduce inventory requirements.

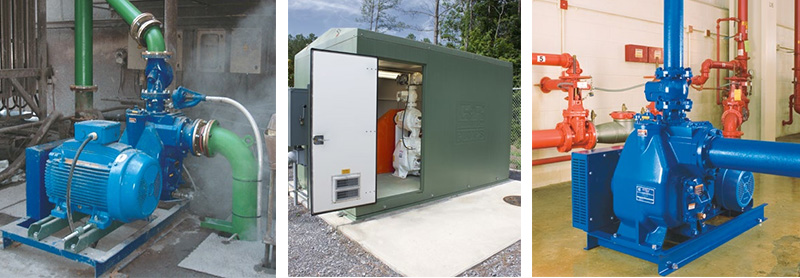

With superior hydraulic efficiency, a compact form factor, and the ability to integrate into ReliaSource® packaged systems, the Ultra V Series stands out as a top-tier solution for industrial and municipal applications.
