- Up to 75% efficiency, among the highest in its class.
- Self-priming: Mounted above liquid level, no foot valve required.
- Handles solids up to 1-1/4″ (31 mm) with multi-vane impeller.
- External shimless adjustment: Maintains peak efficiency without realignment.
- Tool-free maintenance: Easy access via cover plate.
| Brand | Gorman-Rupp |

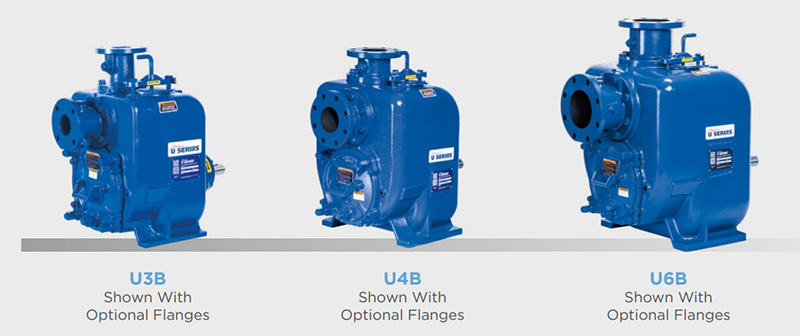

| Size | 3″ (80 mm), 4″ (100 mm), 6″ (150 mm) |
| Max Capacity | 1500 GPM (95 lps) |
| Max Head | 207′ (63 m) |
| Max Solids | 1-1/4″ (32 mm) |
| Max Temperature | 160 F (71 C) |
| Materials of Construction | Cast Iron, CD4MCu, Stainless Steel |
Models
| Item | Size | Casing | Impeller / Rotor | Drive | Flange | Seal |
| U3A60S-B | 3 x 3 | Cast Iron | Ductile Iron | Basic | NPT | Silicon Carbide |
| U3A60S-B /F | 3 x 3 | Cast Iron | Ductile Iron | Basic | ANSI Spool | Silicon Carbide |
| U3B60S-B | 3 x 3 | Cast Iron | Ductile Iron | Basic | NPT | Silicon Carbide |
| U3B60S-B /F | 3 x 3 | Cast Iron | Ductile Iron | Basic | ANSI Spool | Silicon Carbide |
| U3B60S-B /FM | 3 x 3 | Cast Iron | Ductile Iron | Basic | DIN Spool | Silicon Carbide |
| U3B65S-B | 3 x 3 | CD4MCu | CD4MCu | Basic | NPT | Silicon Carbide |
| U3B65S-B /F | 3 x 3 | CD4MCu | CD4MCu | Basic | ANSI Spool | Silicon Carbide |
| U4A60S-B | 4 x 4 | Cast Iron | Ductile Iron | Basic | NPT | Silicon Carbide |
| U4A60S-B /F | 4 x 4 | Cast Iron | Ductile Iron | Basic | ANSI Spool | Silicon Carbide |
| U4B60S-B | 4 x 4 | Cast Iron | Ductile Iron | Basic | NPT | Silicon Carbide |
| U4B60S-B /F | 4 x 4 | Cast Iron | Ductile Iron | Basic | ANSI Spool | Silicon Carbide |
| U4B60S-B /FM | 4 x 4 | Cast Iron | Ductile Iron | Basic | DIN Spool | Silicon Carbide |
| U4B65S-B | 4 x 4 | CD4MCu | CD4MCu | Basic | NPT | Silicon Carbide |
| U4B65S-B /F | 4 x 4 | CD4MCu | CD4MCu | Basic | ANSI Spool | Silicon Carbide |
| U6A60S-B | 6 x 6 | Cast Iron | Ductile Iron | Basic | NPT | Silicon Carbide |
| U6A60S-B /F | 6 x 6 | Cast Iron | Ductile Iron | Basic | ANSI Spool | Silicon Carbide |
| U6B60S-B | 6 x 6 | Cast Iron | Ductile Iron | Basic | NPT | Silicon Carbide |
| U6B60S-B /F | 6 x 6 | Cast Iron | Ductile Iron | Basic | ANSI Spool | Silicon Carbide |
| U6B60S-B /FM | 6 x 6 | Cast Iron | Ductile Iron | Basic | DIN Spool | Silicon Carbide |
| U6B65S-B | 6 x 6 | CD4MCu | CD4MCu | Basic | NPT | Silicon Carbide |
| U6B65S-B /F | 6 x 6 | CD4MCu | CD4MCu | Basic | ANSI Spool | Silicon Carbide |

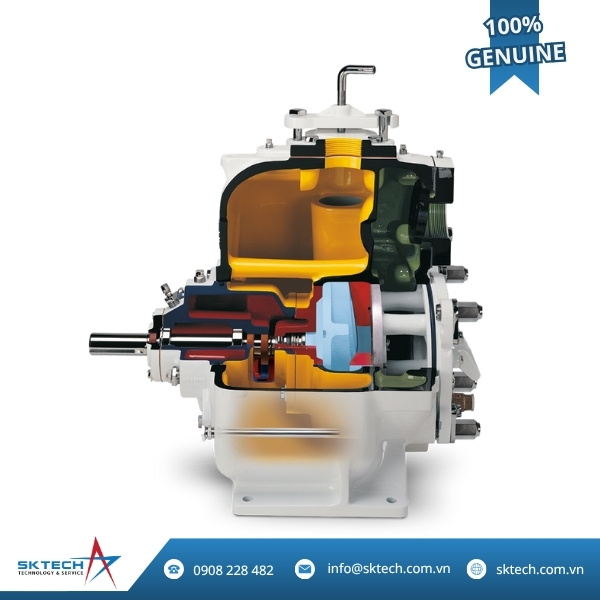

The Gorman-Rupp Super U Series® self-priming pumps are among the most efficient self-priming, solids-handling pumps on the market. Designed for industrial applications requiring consistent reliability and uptime, these pumps achieve up to 75% hydraulic efficiency, ensuring superior performance and energy savings across a wide operating range.
Key features include:
- A unique volute casing that minimizes friction losses and drag, improving hydraulic efficiency.
- A multi-vane, open impeller capable of handling solids up to 1-1/4 inches (31 mm), balancing solid-handling capability and high performance.
- External shimless adjustment system that allows for quick and accurate impeller clearance tuning—no need to disassemble belts, shafts, or couplings, helping extend component lifespan.
- The exclusive Gorman-Rupp cartridge seal, double-floating and oil-lubricated, resists abrasive wear and provides a long-lasting sealing solution for tough environments.
- Tool-free maintenance: A removable cover plate with easy-grip handle enables quick inspection and debris removal without disconnecting the piping system.
- Removable rotating assembly: Enables simple shaft and bearing maintenance by removing just four bolts.

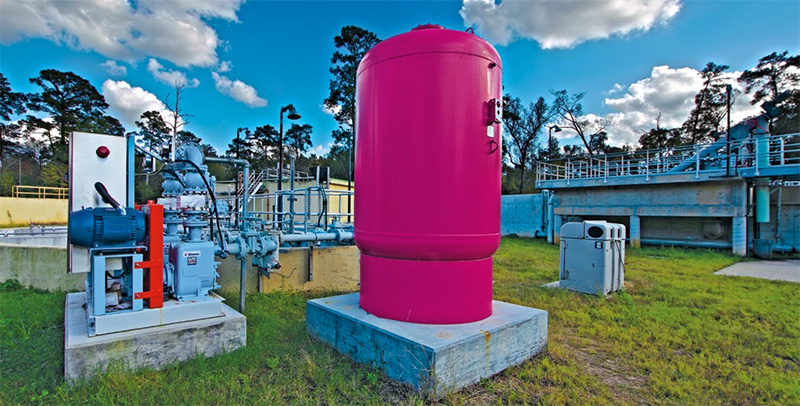

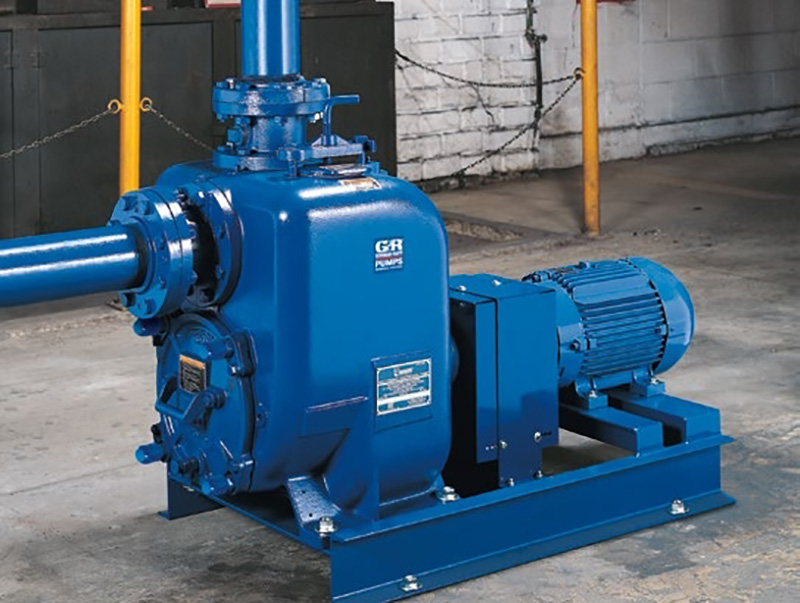

The Super U Series pumps support various drive options, including direct connection, flex-coupling, or v-belt driven electric motors. All models are compatible with standard NEMA motors and can be integrated into ReliaSource® packaged systems for turnkey solutions.
With dimensional interchangeability with Super T Series® pumps and an industry-leading 5-year warranty, the Super U Series is an optimal choice for heavy-duty industrial applications where performance and maintenance efficiency matter most.
