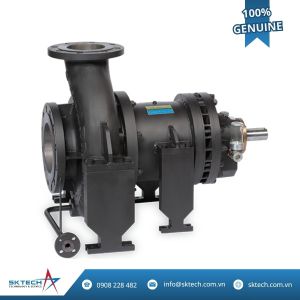

GEKO Pumpen GEKOBLOCK BM Series
- Compact single-stage centrifugal pump with close-coupled block design and magnetic drive
- Sealless and hermetically sealed – ideal for hazardous, toxic, or aggressive fluids
- PTFE/PFA lining, SiC-lined impeller and bearings for high chemical resistance
- Flow rate up to 200 m³/h, temperature up to 150 °C, pressure up to 16 bar
- Modular design interchangeable with standard BM or GEKONORM NM series
- FDA & ATEX certified, suitable for chemical and pharmaceutical industries
- Leak-free operation ensures environmental safety and low maintenance
| Feature | Specification |
|---|---|
| Brand | GEKO Pumpen |
| Pump Type | Single-stage centrifugal, close-coupled |
| Drive Type | Magnetic drive, sealless |
| Lining Material | PTFE / PFA |
| Impeller / Bearing Material | SiC (Silicon Carbide) |
| Max Flow Rate | Up to 200 m³/h |
| Max Temperature | Up to 150 °C |
| Max Pressure | Up to 16 bar |
| Certifications | FDA, ATEX |
| Modular Compatibility | Compatible with GEKONORM NM Series |
The GEKO Pumpen GEKOBLOCK BM Series is a high-performance magnetic drive pump system designed for demanding chemical and process applications. Featuring a compact close-coupled block design, this pump eliminates the need for mechanical seals, offering completely leak-free operation with minimal maintenance.
With PTFE/PFA lining, SiC impeller and bearing materials, and robust magnetic coupling, the GEKOBLOCK BM ensures maximum resistance against corrosive, toxic, and hazardous fluids. It is capable of handling flow rates up to 200 m³/h, temperatures up to 150 °C, and system pressures up to 16 bar.
Thanks to its modular construction, components can be interchanged with other GEKO series, such as the GEKONORM NM, reducing inventory and service downtime.
SK Tech is the authorized distributor of GEKO Pumpen in Vietnam, committed to providing genuine products and technical support for your fluid handling needs.
