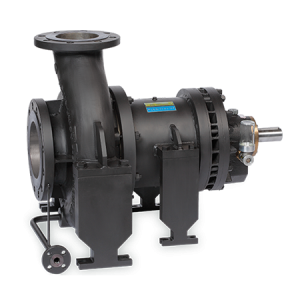

Klaus Union SLM DSP-2C Series Magnet Drive Pumps
- Twin-screw, single-volute pump manufactured to API 676 (3rd Edition) standards, with fully magnetic drive, eliminating shaft seals.
- Leak-free operation, compliant with TA‑Luft emissions standards—ideal for handling toxic, flammable, or environmentally hazardous fluids.
- Modular “Plug & Pump” cartridge design for rapid servicing; close-coupled or bearing-bracket options with grease or oil lubrication.
- High performance: up to 1,800 m³/h flow, 40 bar differential pressure, temperature: –120 °C to +350 °C, pressures to PN 400.
- Customizable containment shells: zirconium oxide, PTFE-lined plastic, double-shell options with leakage monitoring; internal/external flushing available
| Feature | Specification |
|---|---|
| Brand | Klaus Union |
| Pump Type | Single-volute twin-screw, API 676 |
| Flow Rate | Up to 1,800 m³/h |
| Differential Pressure | Up to 40 bar |
| Temperature Range | –120 °C to +350 °C |
| Pressure Rating | Standard PN 25 @120 °C; up to PN 400 on request |
| Drive System | Permanent-magnet, sealless |
| Containment Shell | Zirconia, PTFE-lined, single/double-shell with leak monitoring |
| Bearings | SiC journal (fluid-lubricated); oil/grease optional |
| Mounting | Centerline or foot-mount; close-coupled option |
| Flushing Features | Internal/external flush ports, self-cleaning filters |
The SLM DSP‑2C is a single-volute twin-screw pump designed under API 676 for demanding industrial fluids. Its permanent-magnet, sealless drive delivers hermetic reliability, eliminating seal leaks and achieving compliance with TA‑Luft emission standards.
Featuring a modular cartridge, the pump allows easy swaps for maintenance or service, reducing downtime significantly. It can be configured in close-coupled format or with a bearing-bracket, offering choices between grease- or oil-lubricated bearings.
Performance ranges up to 1,800 m³/h, 40 bar ΔP, –120 °C to +350 °C, and PN 400, making it suitable for refineries, petrochemical plants, tank farms, and offshore/inland facilities.
Designed for reliability and environmental safety, it offers a wide array of containment shell options (zirconium oxide, PTFE-lined, double-shell), solid-handling filters, and flush connections to ensure optimal protection of the magnetic coupling and bearings.
SK Tech is the authorized Klaus Union distributor in Vietnam, provides complete technical support, customized material selection, and full after-sales service.
